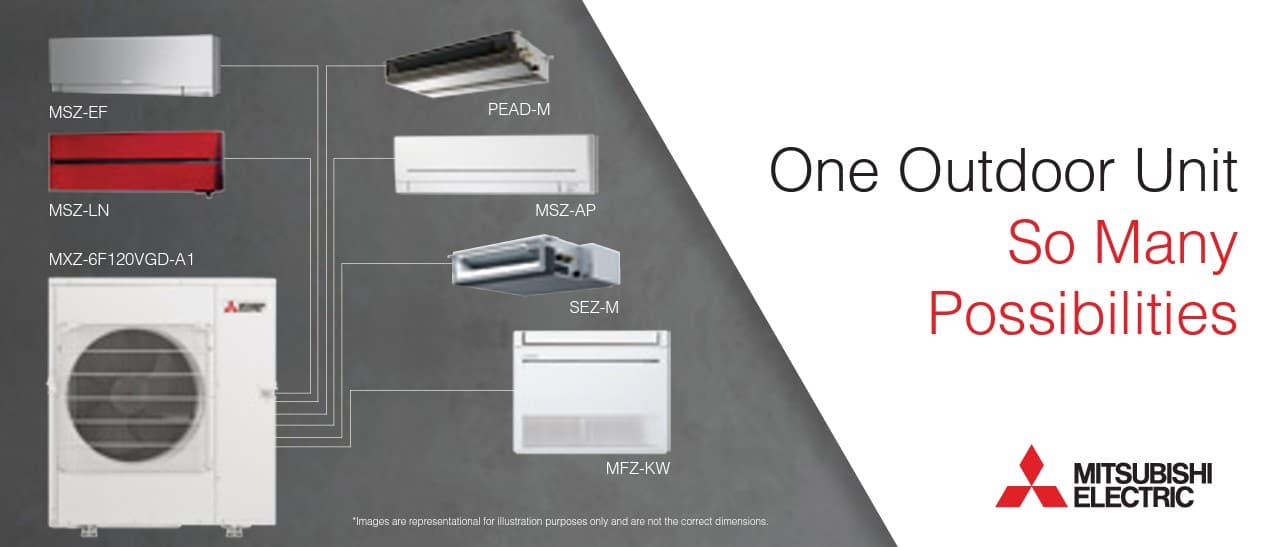

Connect multiple compatible indoor units to one outdoor unit.
A multi-split system connects several compatible indoor air conditioners to one outdoor unit. It can suit Melbourne homes where several rooms need heating and cooling but outdoor space is limited.
Conventional multi-splits generally operate in heating or cooling mode across the connected indoor units. Individual temperature settings do not mean one room can heat while another cools. Daikin explains this operating-mode limitation.
The number of indoor units, available styles and connection combinations are model-specific. We assess the room loads and intended use before recommending equipment.
A flat roof or limited ceiling space can make ductwork difficult to accommodate. A multi-split may provide another option, provided suitable pipe routes, drainage and outdoor unit clearance are available.
The number of rooms served depends on the selected outdoor model and its approved indoor-unit combinations.
Where ceiling and underfloor space are limited, a multi-split may avoid extensive ductwork. We still need to assess refrigerant pipe lengths, drainage, access and the position of each indoor unit.
Compare this with separate single-splits and a ducted system before choosing the installation approach.
A multi-split can serve rooms on different floors where suitable routes and equipment combinations are available. Room temperatures can be set separately within the system’s shared heating or cooling mode.
If simultaneous heating and cooling is required, a conventional multi-split is generally unsuitable. A specialist VRV/VRF heat-recovery configuration may be considered after design assessment.
One outdoor unit can serve several compatible indoor units, reducing the number of outdoor units required. It still needs a suitable mounting position, structural support, clearances and access for servicing.
Indoor units can have separate temperature settings and on/off controls. Conventional multi-splits share a heating or cooling mode, and their available output is shared across the rooms operating at the time.
Most indoor units recirculate and filter room air rather than supplying fresh outdoor air. Ventilation is a separate consideration. Efficiency depends on the model, room loads, controls and conditions of use.
An inverter compressor can adjust its output within the equipment’s operating range as demand changes. Energy use varies with the rooms operating, temperature settings and outdoor conditions; a fixed saving is not guaranteed.
Reverse cycle models provide heating or cooling within the manufacturer’s specified operating range. Capacity and efficiency change with conditions, so the design needs to account for Melbourne’s seasonal demands.
Wall-mounted units, cassettes and concealed units may be available, depending on the product range. Indoor and outdoor units must be matched using the manufacturer’s approved combinations and installation requirements.
With so many astounding benefits attributed to a multi-split air conditioning solution from Alpha Air, it’s easy to see why so many Melbournians are making the switch from their outdated and inefficient air conditioners.
Alpha Air’s highly skilled and experienced Melbourne team will happily come out to your home for installation.
Each indoor unit can have its own settings, but the units share the outdoor system’s operating mode and available capacity. Room-by-room control does not create separate heating and cooling systems.
The indoor-unit style and number of connections must be compatible with the selected outdoor model. We confirm these limits during system design.
The outdoor unit transfers heat between the refrigerant circuit and outside air. It needs manufacturer-specified airflow clearance, suitable structural support, vibration control and safe access for maintenance.
Pipework, electrical connections and condensate drainage must also be planned. A location that looks unobtrusive is only suitable if it meets the equipment and installation requirements.
We assess each room’s heating and cooling load using its size, insulation, glazing, orientation and use. The outdoor unit is then selected using approved indoor-unit combinations, connection ratios, pipe limits and the demand expected when rooms operate together.
The outdoor capacity is not determined simply by adding the indoor-unit ratings. Available output is shared, and the design must account for the manufacturer’s capacity data and operating conditions.
For fewer rooms, compare split system installation in Melbourne. For a concealed whole-home solution, explore ducted air conditioning.
Interested in the benefits of multi-split air conditioning? Want to know if it’s suitable for your home? Get in touch with the Alpha Air team today!
We are committed to providing an exceptional standard of service and will be happy to book a time to inspect your property. We work with the industry’s most reputable and reliable air conditioning brands.
Give us a call on 1300 854 525 or submit an enquiry form, and we will get back to you soon!
